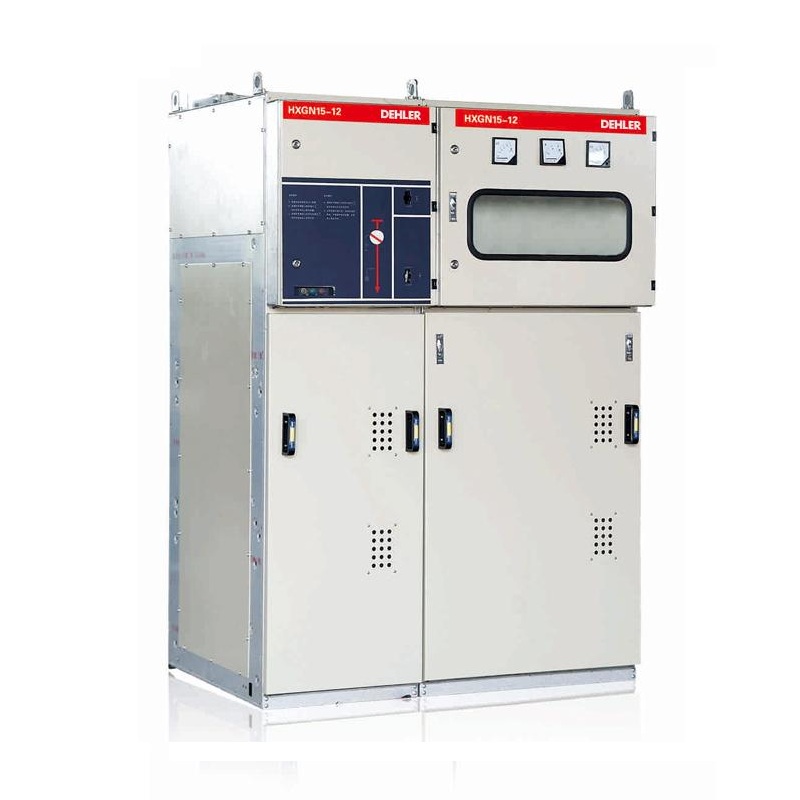

HXGN15-12(F) and HXGN15-12(FR) compact fixed AC metal-enclosed switchgear (hereinafter referred to as “switchgear”) are designed for ring-main or radial power supply systems with a rated voltage of 12 kV and a rated current up to 630 A. They are especially suitable for installation in prefabricated substations to provide control and protection for power systems. This product incorporates the FLN36-120 SF₆ load break switch or the FLRN36-12D load break switch–fuse combination unit, both housed in insulated enclosures. It features compact size, light weight, simple operation, low operating force, reliable interlocking, and maintenance-free performance—making it a new-generation high-voltage switchgear meeting the requirements of urban power grid renovation and construction.
The overall cabinet frame is manufactured from high-quality aluminum-zinc coated steel sheets through CNC precision machining and laser cutting processes. Adopting an entirely bolted assembly structure without any welding joints, the cabinet delivers high dimensional accuracy, superior structural strength, excellent corrosion resistance and lightweight performance. It features strong universality and interchangeability for modular installation and easy on-site assembly.
Rated Voltage: 12 kV
Rated Lightning Impulse Withstand Voltage: 75 kV (phase-to-phase / phase-to-earth); 85 kV (breakdown gap)
Power Frequency Withstand Voltage (1 min): 42 kV (phase-to-phase / phase-to-earth); 48 kV (breakdown gap)
Rated Frequency: 50/60 Hz
Rated Current: Main busbar 630 A; Branch busbar 630 A
Rated Short-Time Withstand Current: 20 kA/3 s (main circuit); 20 kA/2 s (earthing circuit)
Transfer Current: 1700 A
Earthing Switch Mechanical Life: 2000 operations
Altitude: ≤ 1000 m above sea level
Ambient Temperature: -5°C ~ +40°C
Relative Humidity: ≤ 90% (at 15°C)
Seismic Resistance Capacity: Horizontal ground acceleration 0.4g; Vertical ground acceleration 0.2g
| Product Name | Indoor High-Voltage AC Metal-Enclosed Ring Main Switchgear |
| Category | High Voltage Switchgear |
| Brand | XSDQ Electric |
| Manufacturer | Lu'an Xinsheng Electric Co., Ltd. |
| Place of Origin | Anhui, China |
| Certifications | IEC 61439 / GB 7251; CCC self-declaration |
| Warranty | 18 months |
| Customization | OEM/ODM available |
| MOQ | 1 unit (sample) / 5-10 units (bulk) |
Our Indoor High-Voltage AC Metal-Enclosed Ring Main Switchgear is widely used in:
A: All our products are designed and manufactured to IEC 61439 / GB 7251 standards, and low-voltage assemblies carry CCC self-declaration. We can also provide the specific certificates and type-test reports required by your project or destination market.
A: We provide a standard 18-month warranty from the date of shipment. Support includes 2-hour technical response and on-site service within Anhui Province in 24 hours.
A: Yes, we offer full OEM/ODM services including custom design, branding, and packaging. Our R&D team can develop products according to your technical specifications.
A: MOQ is typically 1 unit for samples and 5-10 units for bulk orders of standard High Voltage Switchgear. Custom designs may have different MOQ requirements.
A: Standard products: 15-25 days. Custom products: 30-45 days depending on specifications. We also keep stock for popular models for faster delivery.
A: We accept T/T (30% deposit, 70% balance before shipment), L/C at sight, and Western Union for samples. Other terms negotiable for long-term partners.
